實驗室小型乳化機介紹:
Introduction to the Laboratory Mini Emulsifier:
實驗室小型乳化機是為實驗室微量實驗而設計的一款實驗室設備。通過機械外力作用的方法使液-液 、固-液物料顆粒粒徑變窄,使一種相均勻分布到另一種或多種相中,達到細化均質、分散乳化效果,從而形成穩定的液-液、固-液分散體系的狀態?膳涠喾N不同規格工作頭。
The laboratory mini emulsifier is a type of laboratory equipment designed for micro-scale experiments. It achieves the purpose of narrowing the particle size of liquid-liquid and solid-liquid materials through mechanical external force action, allowing one phase to be uniformly distributed into another or multiple phases, thereby achieving the effects of fine homogenization and dispersion of emulsification, and forming a stable liquid-liquid and solid-liquid dispersion system state. It can be equipped with various different specifications of working heads. 實驗室小型乳化機工作原理:
The working principle of the laboratory micro emulsifier
實驗室小型乳化機強勁的馬達進行高速旋轉使轉、定子之間形成真空,物料從轉、定子上部和底部吸入。強大動能使轉子產生極高的線速度,使物料在轉、定子間隙之間經過強烈的撞擊、破碎、離心擠、液層摩擦、強力剪切之后飛射出去,在多種不同方向力的作用下,產生強大紊流。物料在適量乳化劑和成熟工藝下經過一定時間反復循環解聚、分散、均質、細化、剪切產生穩定乳狀液。
The powerful motor of the laboratory emulsifier rotates at high speed, creating a vacuum between the rotor and stator. The material is then drawn in from the upper and lower parts of the rotor and stator. The strong kinetic energy causes the rotor to generate extremely high linear speed, causing the material to undergo intense impact, crushing, centrifugal squeezing, liquid layer friction, and powerful shearing within the gap between the rotor and stator. Under the action of various different forces, a powerful turbulent flow is generated. With the appropriate emulsifier and mature process, after a certain period of repeated circulation of depolymerization, dispersion, homogenization, refinement, and shearing, a stable emulsion is produced.
實驗室小型乳化機優勢:
Advantages of the laboratory mini emulsifier:
1.均質乳化效率高:產品品質好設備最高轉速可達11000rpm,能夠快速的將粉料/液料均勻分散到液料里面;轉定子加 工精度高、間隙小,物料由于受到極高的剪切力,分散均勻,形成很好的懸浮效果。

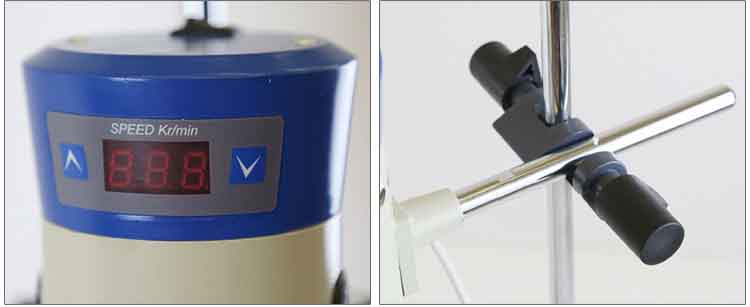

2.操作方便:設備帶有鎖緊手柄,能夠快速升降和固定;電氣控制與驅動電機一體設計,控制方便;帶數字顯示方便讀取和設定相關數值。

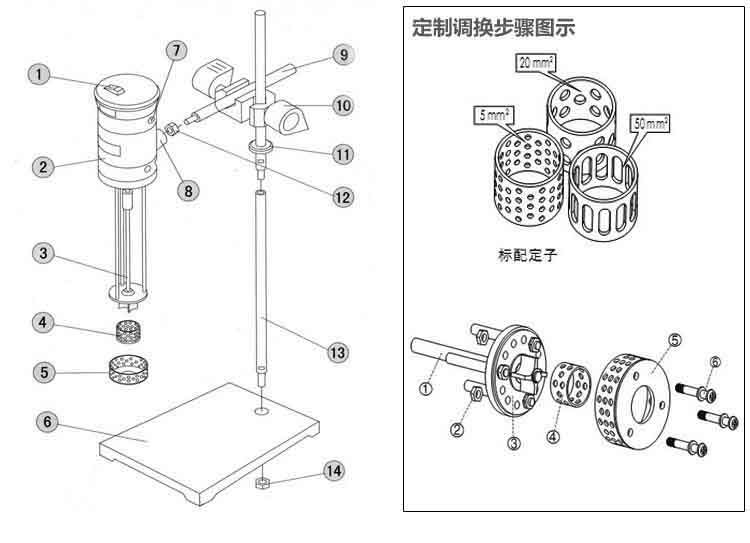

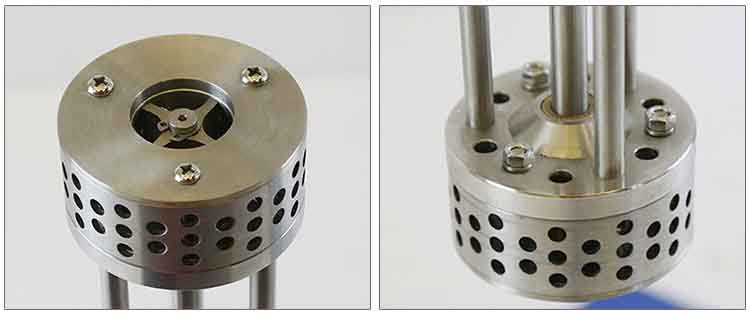

3.適用范圍廣:設備配長孔、圓孔,網孔等不同形式的定子頭,可適用于各種不同特性的物料。
1. Uniform emulsification efficiency is high: The product quality is excellent. The maximum rotational speed of the equipment can reach 11,000 rpm, which can quickly evenly disperse the powder/liquid materials into the liquid; the rotor stator has high processing accuracy and a small gap. Due to the extremely high shear force acting on the materials, they are evenly dispersed and achieve a good suspension effect.
2. Easy operation: The equipment is equipped with a locking handle, which can be quickly raised and fixed; the electrical control and drive motor are integrated, making the control convenient; it has digital display, which is convenient for reading and setting relevant values. 3. Wide application range: The equipment is equipped with different types of stator heads such as long holes, round holes, and mesh holes, which can be used for various materials with different properties.
主要技術參數:
型號:JRL-70
電機功率: 300W
電機轉速: 0-11000r/min
輸入功率: 510W
輸出功率: 300W
處理量:0.5-20L
電源: 220V-50HZ
乳化頭直徑 :70mm
外形尺寸: 250X350X720
定子配置: 5mm2/20mm2/50mm2
Main technical parameters: Model: JRL-70
Motor power: 300W Motor speed: 0 - 11000 r/min
Input power: 510W
Output power: 300W
Processing capacity: 0.5 - 20L
Power supply: 220V - 50Hz
Emulsification head diameter: 70mm
Overall dimensions: 250X350X720
Stator configuration: 5mm2/20mm2/50mm2 |
